R&D Strategy

Raqeeb: Driver Monitoring
System

Machine learning edge deployed models for real-time driver behaviour alerts.

Phone Use

Smoking

Fatigue / Drowsiness

Seatbelt

Distracted Driving

+ 19 alerts

Mowasalat · DMS R&D · 2026

Overview

Work Flow

Data team covers the creation of the consolidated dataset, Model team develops and fine-tunes the edge and centralized models, HW team deploys on edge

Training Pipeline

End-to-End Pipeline

Four-stage flow from raw data to validated models — with action points per stage

Consolidation

Data acquisition — collect and onboard new data sources [ Data ]

Annotation pipeline — deploy auto-label model + human review loop [ Data ]

Centralized storage — secure data store setup [ Data ]

Automating ingestion — automated pipeline for incoming data [ Data ]

Preprocessing

Augmentation transforms — add extra images from existing to enhance models performance [ Data ]

Cleaning and preprocessing — partitioning, human validation [ Data ]

Fine-tuning

Edge model fine-tuning — 1 general vs. many specialized, detection vs. classification, image vs. video architectures [ Model ]

Centralized model fine-tuning — dataset annotation, complex use-case offloading, edge monitoring [ Model ]

Pretrained evaluation — evaluate on open-source datasets and a subset of Howen alert data [ Model ]

Architecture research — experiment with model architectures and sizes [ Model ]

HW compatibility check — validate model fits NPU constraints [ HW ]

Evaluation

Benchmark on Howen data — per-class F1, confusion matrices [ Model ]

Latency profiling — measure on-device inference and overall edge performance [ HW ]

Models

DMS Model Landscape

Comprehensive reference of open-source models for driver behaviour classification and detection

15 models

5 task categories

Updated: March 2026

1

Frame Classification

Single image → class label METRIC: ACCURACY

#	Backbone	Covered Events	Size	Dataset	Accuracy	Pi 5 + Hailo 8	Jetson Orin Nano
1	MobileNetV2 TEEN-D	FatigueDrowsiness1/5	~14 MB	Kaggle DDD	98.99%	✓	✓
2	VGG16 TEEN-D	FatigueDrowsiness1/5	~528 MB	Kaggle DDD	97.51%	✗	✓
3	ResNet18 TEEN-D	FatigueDrowsiness1/5	~45 MB	Kaggle DDD	95.28%	✓	✓
4	EfficientNet-B0 Followb1ind1y	DistractedPhoneEating2/5	~21 MB	StateFarm	97.43%	✓	✓
5	MobileNetV3-Large Followb1ind1y	DistractedPhoneEating2/5	~22 MB	StateFarm	95.03%	✓	✓
6	YOLOv11x-cls mosesb/drowsiness-detection-yolo-cls	FatigueEyesYawning1/5	~60 MB	Kaggle DDD + custom	97.8%	✗	✓
7	MobileViT-v2-200 mosesb/drowsiness-detection-mobileViT-v2	FatigueEyesYawning1/5	~80 MB	Kaggle DDD + custom	96.1%	✗	✓
8	ViT-Base-patch16-224 chbh7051/vit-driver-drowsiness-detection	FatigueEyesYawning1/5	~330 MB	chbh7051/driver-drowsiness	99.0%	✗	✓
9	Custom CNN + VGG16 TEEN-D/Driver-Drowsiness-Detection	FatigueEyesYawning1/5	~140 MB	Kaggle DDD	91.6%	~	✓

2

Clip Classification

Video sequence → class label METRIC: ACCURACY

#	Backbone	Covered Events	Size	Dataset	Performance	Pi 5 + Hailo 8	Jetson Orin Nano
10	TSM + ResNet50 8-class DMS action recognition on NIR video	Safe drivingPhoneEatingDistractedSeatbeltLooking around3/5	~98 MB	Drive&Act (NIR)	63.28% Acc	✗	✓
11	Video Swin Transformer Video Swin Transformer (2023)	Distracted (9 classes)Fatigue2/5	~200 MB	DMD	97.5% Acc	✗	✓

3

Frame Object Detection

Single image → bounding box + class label METRIC: mAP50

mAP50 measures how accurately the model both locates and classifies objects — a score of 90% means the model correctly detects 9 out of 10 objects with at least 50% bounding box overlap.

#	Backbone	Covered Events	Size	Dataset	mAP50	Pi 5 + Hailo 8	Jetson Orin Nano
12	YOLOv8 Driver behaviors (Jui) — 9,901 images	SeatbeltSmokingPhone3/5	~6 MB	Roboflow: Driver behaviors	~85–90%	✓	✓
13	YOLOv8 DMD (Driver Monitoring) — 9,739 images	DistractedFatigueEyes2/5	~22 MB	Roboflow: DMD	~89–92%	✓	✓
14	YOLOv8 + MHSA + ECA ME-YOLOv8 (Debsi et al. 2024)	PhoneEyesYawnSeatbeltFatigue3/5	~30–50 MB	DDFDD + StateFarm + YawDD	87–93%	✗	✓
15	YOLOv8 + DBCA + AFGCA DAHD-YOLO (MDPI Sensors 2025)	SmokingPhoneDistracted3/5	~30–60 MB	Custom + Kaggle cigarette	~90%	✗	✓

4

Clip Detection + Tracking

Video sequence → tracked bounding boxes + class labels METRIC: VARIES

No models with public datasets catalogued. Video-based detection with tracking (e.g., YOLOv8 + SORT/DeepSORT) is relevant for continuous event monitoring but existing implementations use private or custom datasets. This remains an open area for evaluation.

5

Pipeline (Detection → Classification)

Detect / crop region → classify the crop (two-stage)

No standalone pipeline models catalogued yet. However, several Frame Classification models above (rows 1–9) implicitly assume an upstream face/body detector that produces the input crop. In production, these would operate as a two-stage pipeline: e.g., face detector (MTCNN, RetinaFace, or YOLO-face) → crop → classify with MobileNetV3 / EfficientNet.

● ≥95% ● ≥88% ● <88% ● N/A

|

✓ Compatible ~ Conditional ✗ Incompatible

|

Pi 5: ≤150 MB, INT8 req. · Jetson: ≤1 GB, quant. optional

Hardware

Prototyping Platforms

Two candidate edge devices for DMS deployment — NPU-accelerated vs GPU-accelerated inference

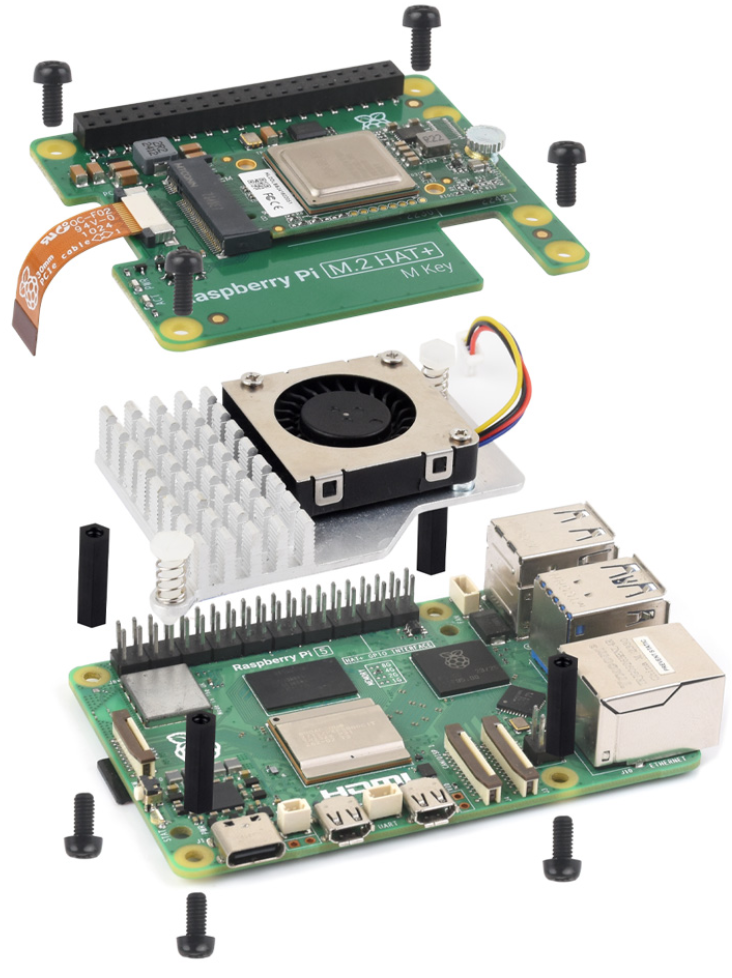

Raspberry Pi 5

with Hailo 8 AI Hat+

NPU Accelerated

Power5.1V @ 5A (stable)

CPUQuad-core ARM Cortex-A76 @ 2.4 GHz

AcceleratorHailo 8 NPU — 26 TOPS, 2.5 W

RAM16 GB LPDDR4X

Camera I/F2× MIPI CSI-2

SensorPi Cam 3 — 12 MP, IMX708 (4608×2592)

Model Deployment

Hailo SDK TF Lite ONNX Keras

Constraints

≤ 150 MBMax model size

INT8Quantization required

5 – 10 TOPSUsable compute budget

ParallelMulti-model inference supported

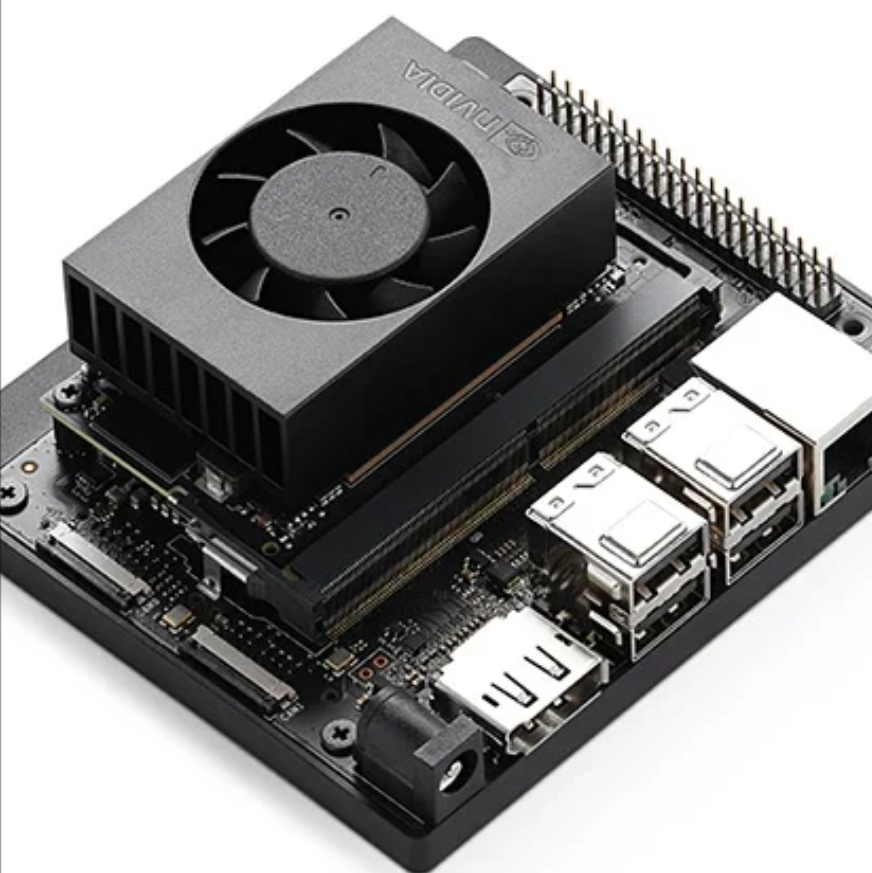

Jetson Orin Nano

NVIDIA Ampere Architecture

GPU Accelerated

Power7 – 19V @ 5A

CPU6-core ARM Cortex-A78 @ 2.4 GHz

AcceleratorCUDA Cores (Ampere) — 67 TOPS

RAM8 GB LPDDR5

Camera I/F2× MIPI CSI-2

SensorPi Cam 3 — 12 MP, IMX708 (4608×2592)

Model Deployment

TensorRT TensorFlow ONNX

Constraints

≤ 1 GBMax model size

OptionalQuantization not required

30 – 50 TOPSUsable compute budget

Shared camera module — Both platforms use Pi Camera 3 (12 MP, Sony IMX708, 4608×2592) via 2× MIPI CSI-2 interface

Datasets

Dataset: Drowsy Detection

48×48 face crops • 2 classes • 7,342 images • Kaggle (yasharjebraeily)

Used to validate TEEN-D model replications (MobileNetV2, ResNet18, VGG16).

Datasets

Dataset: StateFarm Distracted Driver

Dashboard camera • 10 classes • 22,424 images • Kaggle competition

Used to validate Followb1ind1y replications (EfficientNet-B0, MobileNetV3-Large).

Datasets

Dataset: Drive&Act (NIR, Inner Mirror)

8 DMS classes after remapping • 11,895 clips of 8 frames • 640×480 NIR

Safe Driving

Eating / Drinking

Phone Use

Visual Distraction

Manual Distraction

Looking Around

Seatbelt Interaction

Vehicle Entry / Exit

Datasets

Label Remapping & Class Distribution

Drive&Act mid-level activities grouped by safety-relevant driver behavior

Drive&Act defines 34 fine-grained activities collapsed into 8 DMS-relevant categories. 35× class imbalance (safe_driving: 3,707 vs looking_around: 107).

TSM Architecture

Drive&Act Preprocessing Pipeline

NIR-specific preprocessing before temporal shift module classification

NIR frames are extremely dark (88% of pixels below 50/255). CLAHE redistributes contrast, then frames are normalized with ImageNet statistics at full 640×480 resolution.

Models

Sample Predictions

Green = correct, Red = incorrect — mix of successes and failures

Results

TSM Results on Drive&Act

Per-class Precision, Recall, and F1 on the test set

Strong performance on visual_distraction (F1 78.1%) and safe_driving (F1 72.9%). Minority classes (looking_around, seatbelt_interaction) suffer from low support.

Results

TSM Predictions on Drive&Act

Click any clip to expand. Left = most confident correct, Right = most confident wrong.

Most Confident Correct

Most Confident Wrong

Each row = one DMS class. Confidence = softmax probability for the predicted label.
